Radfahr-Daten analysieren

Daten, auf die direkt von Quellen wie RunKeeper zugegriffen oder die von Fitness-Apps heruntergeladen werden können, lassen sich leicht verarbeiten und analysieren.

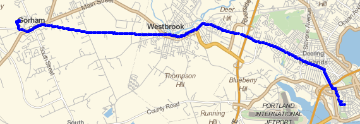

Das folgende Beispiel zeigt die Zeitreihendarstellung einer Radfahrt und die Visualisierung der Fahrradroute auf einer Karte.

In[1]:=

X ts = TemporalData[TimeSeries, {{{ GeoPosition[{43.6825135, -70.4507976, 83.}], GeoPosition[{43.6824641, -70.4507913, 86.3}], GeoPosition[{43.6824194, -70.4508057, 88.5}], GeoPosition[{43.6823841, -70.4508774, 92.3}], GeoPosition[{43.6824166, -70.4513295, 105.}], GeoPosition[{43.6824463, -70.4514706, 104.6}], GeoPosition[{43.6823458, -70.4518227, 102.}], GeoPosition[{43.682274, -70.4519363, 103.3}], GeoPosition[{43.6822706, -70.4520042, 103.8}], GeoPosition[{43.6821883, -70.4520983, 105.}], GeoPosition[{43.6821441, -70.4521054, 104.1}], GeoPosition[{43.6820178, -70.4520423, 102.7}], GeoPosition[{43.6819101, -70.4520075, 101.3}], GeoPosition[{43.6814517, -70.4518069, 95.4}], GeoPosition[{43.6810223, -70.4515284, 100.}], GeoPosition[{43.6806157, -70.451261, 104.1}], GeoPosition[{43.6802561, -70.4511857, 102.2}], GeoPosition[{43.6798199, -70.4512501, 100.}], GeoPosition[{43.6793776, -70.4510418, 98.}], GeoPosition[{43.6791669, -70.4508573, 92.9}], GeoPosition[{43.6791811, -70.450488, 91.6}], GeoPosition[{43.6791067, -70.4498051, 87.3}], GeoPosition[{43.6790009, -70.4491973, 84.4}], GeoPosition[{43.6789636, -70.4488663, 85.6}], GeoPosition[{43.6788059, -70.4482199, 83.5}], GeoPosition[{43.6785987, -70.4476923, 82.}], GeoPosition[{43.6784886, -70.447007, 80.5}], GeoPosition[{43.6784268, -70.4467473, 80.4}], GeoPosition[{43.6784485, -70.4467402, 81.2}], GeoPosition[{43.6784142, -70.446461, 81.6}], GeoPosition[{43.6785003, -70.4458306, 80.9}], GeoPosition[{43.6786256, -70.4454337, 79.7}], GeoPosition[{43.6787736, -70.4447988, 80.3}], GeoPosition[{43.6788667, -70.4445389, 81.}], GeoPosition[{43.6789075, -70.4443682, 81.}], GeoPosition[{43.6791426, -70.4437582, 80.3}], GeoPosition[{43.6794514, -70.4433031, 76.7}], GeoPosition[{43.6797499, -70.4427761, 74.8}], GeoPosition[{43.6799733, -70.44215, 76.4}], GeoPosition[{43.6801652, -70.4415661, 80.6}], GeoPosition[{43.6803166, -70.4409527, 75.4}], GeoPosition[{43.6804956, -70.4403568, 73.1}], GeoPosition[{43.6806663, -70.4397695, 68.6}], GeoPosition[{43.6808592, -70.4391903, 67.1}], GeoPosition[{43.6810431, -70.4386111, 67.6}], GeoPosition[{43.6810795, -70.438365, 67.8}], GeoPosition[{43.6811519, -70.4382366, 67.9}], GeoPosition[{43.6810243, -70.4375518, 67.}], GeoPosition[{43.6809421, -70.4368961, 62.4}], GeoPosition[{43.6808646, -70.4362766, 58.6}], GeoPosition[{43.6807825, -70.4356191, 61.}], GeoPosition[{43.6806994, -70.4349281, 60.2}], GeoPosition[{43.6806161, -70.4342409, 59.2}], GeoPosition[{43.6805253, -70.4335015, 58.4}], GeoPosition[{43.6804487, -70.43288, 58.5}], GeoPosition[{43.6803719, -70.4322462, 57.4}], GeoPosition[{43.6802937, -70.4315983, 58.3}], GeoPosition[{43.6802053, -70.4308677, 60.}], GeoPosition[{43.6801282, -70.43025, 58.2}], GeoPosition[{43.6800364, -70.4295421, 54.6}], GeoPosition[{43.6799418, -70.4288165, 55.}], GeoPosition[{43.6798518, -70.4281145, 57.}], GeoPosition[{43.6797592, -70.4273927, 56.}], GeoPosition[{43.6796621, -70.4266353, 55.}], GeoPosition[{43.6795814, -70.4260066, 55.}], GeoPosition[{43.6794996, -70.4253685, 60.}], GeoPosition[{43.6794049, -70.4246333, 57.}], GeoPosition[{43.6793371, -70.4241097, 56.}], GeoPosition[{43.6792608, -70.4238777, 54.}], GeoPosition[{43.6792903, -70.4237571, 53.}], GeoPosition[{43.6792086, -70.4231321, 46.4}], GeoPosition[{43.679111, -70.4223826, 44.}], GeoPosition[{43.6790244, -70.421724, 44.7}], GeoPosition[{43.6789391, -70.4210751, 45.7}], GeoPosition[{43.6788555, -70.4204398, 45.1}], GeoPosition[{43.6787682, -70.4197761, 43.7}], GeoPosition[{43.6786819, -70.4191191, 43.}], GeoPosition[{43.678598, -70.418478, 43.}], GeoPosition[{43.6785172, -70.417861, 46.}], GeoPosition[{43.6784273, -70.4171666, 46.}], GeoPosition[{43.6783408, -70.4164883, 46.8}], GeoPosition[{43.6782556, -70.4158151, 48.}], GeoPosition[{43.6781774, -70.4151828, 44.8}], GeoPosition[{43.678115, -70.4145118, 43.}], GeoPosition[{43.6780986, -70.4138682, 43.}], GeoPosition[{43.6779933, -70.4136278, 43.5}], GeoPosition[{43.6779871, -70.4135306, 43.6}], GeoPosition[{43.6780738, -70.4132944, 43.9}], GeoPosition[{43.6780935, -70.4126308, 44.8}], GeoPosition[{43.6780831, -70.4119843, 43.8}], GeoPosition[{43.6780722, -70.411347, 41.1}], GeoPosition[{43.6780584, -70.4106331, 39.}], GeoPosition[{43.6780475, -70.4098969, 39.}], GeoPosition[{43.6780056, -70.4091772, 38.4}], GeoPosition[{43.6780029, -70.4084532, 35.9}], GeoPosition[{43.6779893, -70.4078063, 35.6}], GeoPosition[{43.6779929, -70.4071227, 35.3}], GeoPosition[{43.6779849, -70.4064383, 34.6}], GeoPosition[{43.6779507, -70.4057669, 33.4}], GeoPosition[{43.6779503, -70.4051283, 31.3}], GeoPosition[{43.6779126, -70.4044781, 34.}], GeoPosition[{43.6778668, -70.4038296, 33.8}], GeoPosition[{43.6778598, -70.4032088, 32.2}], GeoPosition[{43.6778279, -70.4025139, 31.}], GeoPosition[{43.6778075, -70.401839, 30.9}], GeoPosition[{43.6777873, -70.4011976, 29.8}], GeoPosition[{43.6777629, -70.4005128, 28.7}], GeoPosition[{43.6777386, -70.3998615, 28.5}], GeoPosition[{43.6777111, -70.3993556, 29.8}], GeoPosition[{43.6777367, -70.3992792, 30.1}], GeoPosition[{43.6777089, -70.3985909, 33.2}], GeoPosition[{43.6776841, -70.3979481, 33.1}], GeoPosition[{43.6776563, -70.397224, 30.3}], GeoPosition[{43.6776323, -70.3965478, 29.5}], GeoPosition[{43.6776074, -70.3958312, 29.3}], GeoPosition[{43.6775842, -70.3951614, 31.}], GeoPosition[{43.6775606, -70.394483, 35.}], GeoPosition[{43.6775379, -70.3938273, 39.}], GeoPosition[{43.6775163, -70.3932059, 42.5}], GeoPosition[{43.6774925, -70.3925203, 43.7}], GeoPosition[{43.6774693, -70.3918516, 42.}], GeoPosition[{43.6774433, -70.3910311, 44.}], GeoPosition[{43.6774168, -70.3903456, 42.5}], GeoPosition[{43.6773925, -70.3897148, 44.4}], GeoPosition[{43.6773699, -70.389056, 46.}], GeoPosition[{43.677348, -70.3883628, 46.}], GeoPosition[{43.6773265, -70.3877006, 44.7}], GeoPosition[{43.6773153, -70.3873757, 43.4}], GeoPosition[{43.6772768, -70.3872462, 42.9}], GeoPosition[{43.6772665, -70.386982, 42.}], GeoPosition[{43.6772972, -70.3868511, 40.8}], GeoPosition[{43.6772728, -70.3861433, 35.3}], GeoPosition[{43.677248, -70.3854263, 32.}], GeoPosition[{43.677225, -70.3847576, 29.}], GeoPosition[{43.6771967, -70.3840216, 30.}], GeoPosition[{43.6771754, -70.3833901, 26.7}], GeoPosition[{43.6771565, -70.3827665, 23.9}], GeoPosition[{43.677137, -70.382123, 23.4}], GeoPosition[{43.677118, -70.3814879, 23.4}], GeoPosition[{43.6770977, -70.3807994, 24.6}], GeoPosition[{43.6770818, -70.3800681, 25.7}], GeoPosition[{43.6770727, -70.3793833, 27.}], GeoPosition[{43.6770628, -70.3786455, 27.6}], GeoPosition[{43.6770539, -70.3780183, 28.}], GeoPosition[{43.6770455, -70.3773849, 29.5}], GeoPosition[{43.6770378, -70.3766937, 27.6}], GeoPosition[{43.6770294, -70.3759453, 23.3}], GeoPosition[{43.6770192, -70.3753107, 23.1}], GeoPosition[{43.6770073, -70.3746805, 25.3}], GeoPosition[{43.6769806, -70.3740226, 24.4}], GeoPosition[{43.6769734, -70.3733498, 24.}], GeoPosition[{43.6770171, -70.3726517, 24.6}], GeoPosition[{43.6770442, -70.3719534, 25.5}], GeoPosition[{43.6770626, -70.3712297, 23.4}], GeoPosition[{43.6770701, -70.370543, 22.4}], GeoPosition[{43.6770451, -70.3698561, 20.}], GeoPosition[{43.6770121, -70.3692293, 20.3}], GeoPosition[{43.6770095, -70.3688099, 21.6}], GeoPosition[{43.676918, -70.3681673, 30.1}], GeoPosition[{43.6769076, -70.3681042, 32.}], GeoPosition[{43.6768867, -70.368175, 34.}], GeoPosition[{43.6767743, -70.3675594, 33.}], GeoPosition[{43.676744, -70.3669372, 32.6}], GeoPosition[{43.676717, -70.3668861, 31.9}], GeoPosition[{43.6767078, -70.3666285, 31.6}], GeoPosition[{43.6766433, -70.3664463, 31.4}], GeoPosition[{43.676581, -70.3658783, 30.7}], GeoPosition[{43.676383, -70.3652813, 29.8}], GeoPosition[{43.6763525, -70.364902, 29.4}], GeoPosition[{43.6762938, -70.3647703, 29.2}], GeoPosition[{43.6762585, -70.3647799, 29.}], GeoPosition[{43.6762362, -70.3645559, 28.9}], GeoPosition[{43.6762797, -70.3641719, 28.4}], GeoPosition[{43.6762771, -70.3639759, 28.1}], GeoPosition[{43.6763838, -70.3633028, 31.7}], GeoPosition[{43.6765282, -70.3626605, 31.}], GeoPosition[{43.6765758, -70.3624368, 31.7}], GeoPosition[{43.6765701, -70.3622852, 32.}], GeoPosition[{43.6766204, -70.3621962, 32.5}], GeoPosition[{43.6767182, -70.3616014, 33.8}], GeoPosition[{43.6768631, -70.3609887, 34.}], GeoPosition[{43.6768755, -70.3609055, 33.5}], GeoPosition[{43.6768894, -70.3609108, 32.5}], GeoPosition[{43.6770825, -70.3603481, 30.4}], GeoPosition[{43.6773614, -70.3597352, 28.3}], GeoPosition[{43.6776504, -70.3591454, 25.5}], GeoPosition[{43.6779338, -70.3585305, 22.}], GeoPosition[{43.6781665, -70.3579588, 21.}], GeoPosition[{43.6784259, -70.3573734, 20.9}], GeoPosition[{43.6786464, -70.3567122, 20.3}], GeoPosition[{43.678815, -70.3561268, 20.8}], GeoPosition[{43.6789285, -70.3555225, 22.1}], GeoPosition[{43.6789807, -70.3552907, 22.7}], GeoPosition[{43.6790046, -70.3552777, 23.1}], GeoPosition[{43.6791635, -70.354669, 26.3}], GeoPosition[{43.6794101, -70.3541144, 26.6}], GeoPosition[{43.6797238, -70.3536022, 22.7}], GeoPosition[{43.6800259, -70.353115, 22.}], GeoPosition[{43.6803704, -70.3526151, 21.}], GeoPosition[{43.6806819, -70.3521354, 19.3}], GeoPosition[{43.6810064, -70.3516778, 17.7}], GeoPosition[{43.6813517, -70.3511701, 16.5}], GeoPosition[{43.6815266, -70.3507054, 16.}], GeoPosition[{43.6813535, -70.3500768, 18.9}], GeoPosition[{43.681237, -70.3494128, 28.}], GeoPosition[{43.6812425, -70.3490574, 26.}], GeoPosition[{43.6812235, -70.348293, 30.}], GeoPosition[{43.6812116, -70.347648, 26.2}], GeoPosition[{43.6812012, -70.3470206, 25.8}], GeoPosition[{43.6811793, -70.3467333, 26.3}], GeoPosition[{43.6811546, -70.346683, 26.4}], GeoPosition[{43.6811419, -70.3467081, 26.5}], GeoPosition[{43.6809378, -70.3461043, 27.2}], GeoPosition[{43.6807687, -70.3455565, 28.}], GeoPosition[{43.6806795, -70.345413, 28.4}], GeoPosition[{43.6806907, -70.345388, 28.5}], GeoPosition[{43.6804637, -70.3448159, 31.}], GeoPosition[{43.68031, -70.3441832, 34.4}], GeoPosition[{43.6802063, -70.3438299, 36.5}], GeoPosition[{43.6799479, -70.343139, 38.7}], GeoPosition[{43.6797593, -70.3426862, 36.5}], GeoPosition[{43.6796803, -70.3423894, 31.8}], GeoPosition[{43.6796178, -70.3422658, 30.4}], GeoPosition[{43.6796082, -70.3422802, 29.}], GeoPosition[{43.6796208, -70.342272, 28.8}], GeoPosition[{43.6794337, -70.3416474, 26.7}], GeoPosition[{43.6792069, -70.3410668, 30.3}], GeoPosition[{43.6789967, -70.3404829, 35.6}], GeoPosition[{43.678898, -70.3402557, 34.4}], GeoPosition[{43.6787107, -70.3396582, 33.}], GeoPosition[{43.6786701, -70.3395013, 33.}], GeoPosition[{43.6785333, -70.3390555, 29.8}], GeoPosition[{43.6785325, -70.3388947, 28.}], GeoPosition[{43.678398, -70.338285, 31.2}], GeoPosition[{43.6782982, -70.3376024, 31.2}], GeoPosition[{43.6781966, -70.3369147, 28.}], GeoPosition[{43.6780597, -70.336037, 25.5}], GeoPosition[{43.6780269, -70.3358336, 25.}], GeoPosition[{43.6779291, -70.3352262, 25.}], GeoPosition[{43.6778677, -70.334996, 25.8}], GeoPosition[{43.6778057, -70.3343309, 25.7}], GeoPosition[{43.6777226, -70.3337201, 22.9}], GeoPosition[{43.6776259, -70.3331056, 21.6}], GeoPosition[{43.6775001, -70.3324244, 21.}], GeoPosition[{43.6773748, -70.3317522, 22.2}], GeoPosition[{43.677083, -70.3301618, 26.4}], GeoPosition[{43.6769444, -70.3294073, 29.}], GeoPosition[{43.6768029, -70.3288157, 30.1}], GeoPosition[{43.6766426, -70.3281634, 31.3}], GeoPosition[{43.6764607, -70.3275443, 31.2}], GeoPosition[{43.6762422, -70.3269301, 34.4}], GeoPosition[{43.6760158, -70.3263116, 39.}], GeoPosition[{43.6758243, -70.3256975, 35.3}], GeoPosition[{43.6756282, -70.3251328, 34.8}], GeoPosition[{43.675377, -70.3245428, 33.}], GeoPosition[{43.6751385, -70.3239958, 33.4}], GeoPosition[{43.6748671, -70.3234038, 32.}], GeoPosition[{43.6746676, -70.3229465, 32.}], GeoPosition[{43.6745176, -70.3222395, 30.3}], GeoPosition[{43.6743982, -70.3215766, 27.6}], GeoPosition[{43.67426, -70.3208307, 23.7}], GeoPosition[{43.6741341, -70.3200849, 20.9}], GeoPosition[{43.6740541, -70.3194532, 19.4}], GeoPosition[{43.6739803, -70.3187658, 17.4}], GeoPosition[{43.6738931, -70.318198, 12.}], GeoPosition[{43.6739089, -70.3181584, 12.2}], GeoPosition[{43.6738888, -70.318147, 12.3}], GeoPosition[{43.673911, -70.3181496, 12.8}], GeoPosition[{43.673822, -70.3178257, 12.1}], GeoPosition[{43.6737201, -70.3171569, 12.7}], GeoPosition[{43.6735887, -70.3164169, 14.6}], GeoPosition[{43.6733101, -70.3153709, 17.7}], GeoPosition[{43.6731748, -70.3149427, 20.}], GeoPosition[{43.6729666, -70.3143212, 19.4}], GeoPosition[{43.6728464, -70.3139028, 19.6}], GeoPosition[{43.6728052, -70.3136566, 18.4}], GeoPosition[{43.6726479, -70.3132151, 15.9}], GeoPosition[{43.6724994, -70.3125995, 15.4}], GeoPosition[{43.6723568, -70.3118445, 12.}], GeoPosition[{43.6723364, -70.311713, 10.2}], GeoPosition[{43.6720966, -70.3111365, 5.4}], GeoPosition[{43.6719152, -70.310562, 6.3}], GeoPosition[{43.6717056, -70.3099287, 8.3}], GeoPosition[{43.6715166, -70.3093508, 10.2}], GeoPosition[{43.6712991, -70.3087995, 8.4}], GeoPosition[{43.6711883, -70.308308, 7.4}], GeoPosition[{43.670954, -70.307662, 8.7}], GeoPosition[{43.6707416, -70.3070929, 13.}], GeoPosition[{43.6704521, -70.3063762, 13.}], GeoPosition[{43.6702186, -70.3057869, 14.9}], GeoPosition[{43.6699932, -70.3051718, 15.3}], GeoPosition[{43.669786, -70.3045395, 15.8}], GeoPosition[{43.6695103, -70.3038566, 17.}], GeoPosition[{43.6694436, -70.3035959, 17.6}], GeoPosition[{43.6692078, -70.3030156, 21.9}], GeoPosition[{43.6690857, -70.3026043, 27.}], GeoPosition[{43.6689578, -70.3024059, 27.}], GeoPosition[{43.6687584, -70.3017702, 24.5}], GeoPosition[{43.6685591, -70.3011837, 25.}], GeoPosition[{43.6683322, -70.3006002, 22.4}], GeoPosition[{43.6682634, -70.300346, 23.5}], GeoPosition[{43.6680369, -70.299804, 26.}], GeoPosition[{43.6678258, -70.2992462, 28.8}], GeoPosition[{43.667616, -70.2986638, 27.7}], GeoPosition[{43.6673835, -70.2980693, 26.2}], GeoPosition[{43.6669326, -70.2968893, 29.1}], GeoPosition[{43.6666929, -70.2962993, 34.8}], GeoPosition[{43.6665197, -70.295902, 37.3}], GeoPosition[{43.6663652, -70.2952857, 37.7}], GeoPosition[{43.6662089, -70.2946493, 34.}], GeoPosition[{43.6660366, -70.2940349, 36.3}], GeoPosition[{43.6658969, -70.293437, 34.3}], GeoPosition[{43.6657278, -70.2928614, 32.4}], GeoPosition[{43.6656474, -70.2924696, 34.6}], GeoPosition[{43.6655594, -70.2922758, 36.}], GeoPosition[{43.6655224, -70.2919455, 39.}], GeoPosition[{43.6654227, -70.2917285, 41.5}], GeoPosition[{43.6654135, -70.2916631, 42.3}], GeoPosition[{43.6654463, -70.2916499, 44.}], GeoPosition[{43.6652877, -70.2912568, 44.}], GeoPosition[{43.6651799, -70.2909185, 44.}], GeoPosition[{43.6650644, -70.2903395, 42.}], GeoPosition[{43.66507, -70.2902912, 41.3}], GeoPosition[{43.6649407, -70.2897234, 40.}], GeoPosition[{43.664764, -70.2893282, 40.}], GeoPosition[{43.6646289, -70.2886893, 40.}], GeoPosition[{43.6645165, -70.2882774, 38.}], GeoPosition[{43.6645137, -70.2882004, 37.}], GeoPosition[{43.6642915, -70.2876566, 34.3}], GeoPosition[{43.6641129, -70.2872887, 32.6}], GeoPosition[{43.6640257, -70.2869833, 31.7}], GeoPosition[{43.6639049, -70.286382, 29.4}], GeoPosition[{43.6637381, -70.2857855, 25.2}], GeoPosition[{43.6635425, -70.2852029, 19.4}], GeoPosition[{43.6634189, -70.2850023, 17.4}], GeoPosition[{43.6633243, -70.2847393, 16.8}], GeoPosition[{43.6628463, -70.2846749, 15.7}], GeoPosition[{43.6623504, -70.2845781, 16.}], GeoPosition[{43.6618969, -70.2844662, 16.4}], GeoPosition[{43.661482, -70.2841964, 17.1}], GeoPosition[{43.6610672, -70.2839182, 17.8}], GeoPosition[{43.6606525, -70.2836327, 18.4}], GeoPosition[{43.6602382, -70.2833442, 18.9}], GeoPosition[{43.6598048, -70.2830424, 17.4}], GeoPosition[{43.6594001, -70.2827612, 17.3}], GeoPosition[{43.6589765, -70.2824676, 17.7}], GeoPosition[{43.6585516, -70.2821734, 17.4}], GeoPosition[{43.6581086, -70.2818667, 17.}], GeoPosition[{43.6575622, -70.2814909, 15.4}], GeoPosition[{43.6571584, -70.2812153, 14.2}], GeoPosition[{43.656727, -70.2809238, 11.3}], GeoPosition[{43.6563213, -70.2806497, 10.}], GeoPosition[{43.6558729, -70.2803612, 9.4}], GeoPosition[{43.6558143, -70.280324, 8.3}], GeoPosition[{43.6557698, -70.2798547, 6.}], GeoPosition[{43.6558127, -70.2792372, 6.}], GeoPosition[{43.6557875, -70.2790856, 6.}], GeoPosition[{43.6553404, -70.2788, 6.}], GeoPosition[{43.6548863, -70.2785584, 6.}], GeoPosition[{43.6540065, -70.2780878, 17.5}], GeoPosition[{43.6535746, -70.2778551, 25.3}], GeoPosition[{43.6531361, -70.2776451, 27.9}], GeoPosition[{43.6527071, -70.2774258, 42.}], GeoPosition[{43.6517512, -70.2770242, 49.3}], GeoPosition[{43.650812, -70.2768953, 48.8}], GeoPosition[{43.6506703, -70.276899, 50.2}], GeoPosition[{43.6509657, -70.2764649, 51.9}], GeoPosition[{43.6509587, -70.276388, 52.1}], GeoPosition[{43.6508477, -70.2761181, 52.2}], GeoPosition[{43.6508124, -70.2758311, 53.}], GeoPosition[{43.6506526, -70.2758313, 53.6}], GeoPosition[{43.6506168, -70.2761919, 53.7}], GeoPosition[{43.6505145, -70.2762078, 54.}], GeoPosition[{43.6505873, -70.2761261, 54.3}], GeoPosition[{43.6501082, -70.2761261, 55.4}], GeoPosition[{43.649631, -70.2760952, 53.7}], GeoPosition[{43.6495886, -70.2760787, 53.5}], GeoPosition[{43.6495726, -70.2754381, 52.2}], GeoPosition[{43.6495661, -70.2747871, 56.3}], GeoPosition[{43.6495595, -70.2741585, 54.3}]}}, CompressedData[" 1:eJxd2DmOJDYMBdAewJFv4RtIpBbyCAM48hEcGHDkYBz68FY4r4Iu9AdFip+b WPXbn//88de3r6+vH7+8j9///vHvB/rv20/o+6/vnzxzjjtGDeEF9hQifX/C As4UbuERfug2MKZQyylcWt46eZRevSpha7nxKqQf8g0JRoRQXSlEqpsl1A35 xvaiM4RLqO5Vam2EtRHN4RyELk13hoeThObC59xDmEJNHXUPsUoZZXm4iGQ2 0VgjhRxeElyW6DK/K0OIk2vh5JL+2l50vMgMrutF14tKRlb7Kk01pvYYQgju CYVtNHYQum1574VXW/rb/t0W8L5eJN8twf3ByGm2G90zplCpzX4cX8cBdUKp zX4shmM0ziJ0x2I4FsOx+M+F4DG/x+F25Xvle83vNb9Xgjc9nPh8rfa7NbU1 Zbqv6b6m+0rwOqBqkP2amKqg6soBVUvp4t6yRMuWLEdQmZSSQjlyq3RDguXr XI6vlm+b0DahLf0OTVmx7QPUPkDtfG4foDY47bxqo9HOq3Zcd/9cV3PA98EG 8hzPQYfOkeqS7gcvcHuYHnzwQ+pFV1jqloyqgK1XpPv9LSG670MYwhQSuhke pjUe9PDS1NpCvdpSMHTT0M2jqSsj2uqtk+qWTlo5YeWEleMi94KRwg8pBF3G ZkgwpBBX3dIy02wm4/pBfHb7mqnPabVnEro0R2mO8ujG8fDRDQnm1ZQ5ytIN i9/ta67JYbevBz3MA/SgUpt9LU2xmj6oV1s3GG4PepEluq5Se38ZjWX2txW7 Dc5mG5mb2f7gEXrYWG2jsZ2Ee+uVk/CwPz+I7rFEXZle62vKHJ3tYdvqGHa3 oHkKn0+ryxL4ZswSYtml6EGlMnJHmjc/oLryvQ7VyxI4r4Pxsm+8QUi63WQe 5N4yocUyNss4l71fH/fyzXq62DyolE3mQVLWFpKbzGwLqX2t2lnX0m/buZ11 bWDbumqnWVtXTcPGgEIMls8HCxhKQykdGoMBFYNvTzGZkzFDaSilVMK3Oya1 ET7W4XMc/q7yIBR8nR/03tIr3u6Y7b2USoRxDvr3QdwItqDwoX+Qe8PQRWjZ HEV62JSFKQtTFsY5trpHeD3MPvmgFIxVDvgm0yzcGcJfbB7Eci4tS8GdIfJq 6qrLZIhsD5t9f7EJf7F5EMtLgotBEeuqa8UuQ7cNzuG3kThWzgkY+QX/wQ8p jHzpHiyhF9mS56h7lRrnY9MdNuS3qOLVe2T+B2Q/fIs= "], 1, { "Continuous", 1}, {"Discrete", 1}, 1, { ValueDimensions -> 1, ResamplingMethod -> {"Interpolation", InterpolationOrder -> 1}}}, True, 10.];

In[2]:=

X GeoGraphics[{AbsolutePointSize[3], Blue, Point[ts["Values"]]}, ImageSize -> Medium]

Out[2]=

Berechnen Sie die gesamte Strecke, die Fahrtdauer und die Durchschnittsgeschwindigkeit.

In[3]:=

X totalDuration = Quantity[(ts["LastTime"] - ts["FirstTime"])/60., "Minutes"]

Out[3]=

In[4]:=

X totalDistance = UnitConvert[Total[GeoDistance @@@ Partition[ts["Values"], 2, 1]], "Kilometers"]

Out[4]=

In[5]:=

X UnitConvert[totalDistance/totalDuration, "Kilometers per Hour"]

Out[5]=

Interessanter wird es, wenn Sie die Bergauf- und Bergababschnitte der Route, sowie die Gesamtstatistik mit der jeweiligen Fahrtdauer, den jeweiligen Distanzen und der Durchschnittsgeschwindigkeit für die Bergauf- und Bergababschnitte berechnen und anzeigen.

Extrahieren Sie Zeit, Position (geographische Länge und Breite) und Höhendaten aus der Zeitreihe.

In[6]:=

X times = ts["Times"]; position = Most /@ First /@ ts["Values"]; elevation = Last /@ First /@ ts["Values"];

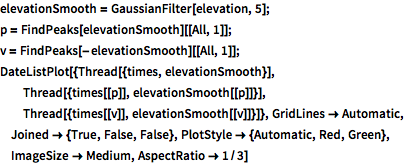

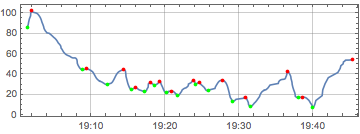

Glätten Sie die Daten. Ermitteln und zeigen Sie die Spitzenwerte (rot) und Mindestwerte (grün) an.

Die gesamte Wolfram-Language Eingabe zeigenEingabe verbergen

In[7]:=

X elevationSmooth = GaussianFilter[elevation, 5]; p = FindPeaks[elevationSmooth][[All, 1]]; v = FindPeaks[-elevationSmooth][[All, 1]]; DateListPlot[{Thread[{times, elevationSmooth}], Thread[{times[[p]], elevationSmooth[[p]]}], Thread[{times[[v]], elevationSmooth[[v]]}]}, GridLines -> Automatic, Joined -> {True, False, False}, PlotStyle -> {Automatic, Red, Green}, ImageSize -> Medium, AspectRatio -> 1/3]

Out[7]=

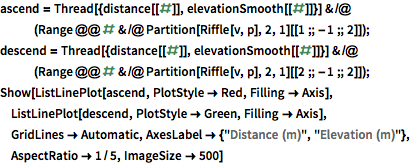

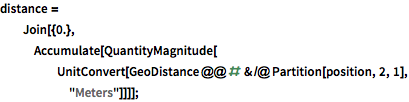

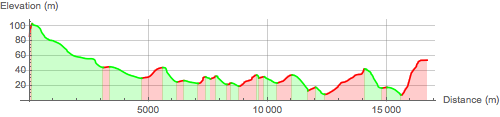

Berechnen und visualisieren Sie die Bergauf- (rot) und Bergabteilstrecken (grün) der Radfahrt.

Die gesamte Wolfram-Language Eingabe zeigenEingabe verbergen

In[8]:=

X distance = Join[{0.}, Accumulate[ QuantityMagnitude[ UnitConvert[GeoDistance @@ # & /@ Partition[position, 2, 1], "Meters"]]]];

In[9]:=

X ascend = Thread[{distance[[#]], elevationSmooth[[#]]}] & /@ (Range @@ # & /@ Partition[Riffle[v, p], 2, 1][[1 ;; -1 ;; 2]]); descend = Thread[{distance[[#]], elevationSmooth[[#]]}] & /@ (Range @@ # & /@ Partition[Riffle[v, p], 2, 1][[2 ;; -1 ;; 2]]); Show[ListLinePlot[ascend, PlotStyle -> Red, Filling -> Axis], ListLinePlot[descend, PlotStyle -> Green, Filling -> Axis], GridLines -> Automatic, AxesLabel -> {"Distance (m)", "Elevation (m)"}, AspectRatio -> 1/5, ImageSize -> 500]

Out[9]=

Gesamtzeit der Bergauf- und Bergabteilstrecken.

In[10]:=

X ascendTime = Table[times[[p]][[i]] - times[[v]][[i]], {i, Length[p]}]; descendTime = Table[times[[v]][[i + 1]] - times[[p]][[i]], {i, Length[p] - 1}]; adTime = Quantity[{Total[ascendTime], Total[descendTime]}/60., "Minutes"]

Out[10]=

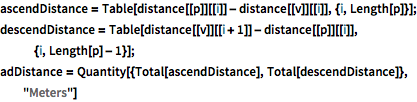

Gesamtdistanz der Bergauf- und Bergabteilstrecken.

In[11]:=

X ascendDistance = Table[distance[[p]][[i]] - distance[[v]][[i]], {i, Length[p]}]; descendDistance = Table[distance[[v]][[i + 1]] - distance[[p]][[i]], {i, Length[p] - 1}]; adDistance = Quantity[{Total[ascendDistance], Total[descendDistance]}, "Meters"]

Out[11]=

Durchschnittsgeschwindigkeit der Bergauf- und Bergabteilstrecken.

In[12]:=

X UnitConvert[adDistance/adTime, "Kilometers per hour"]

Out[12]=

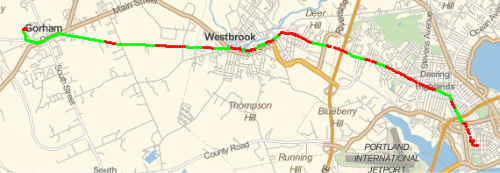

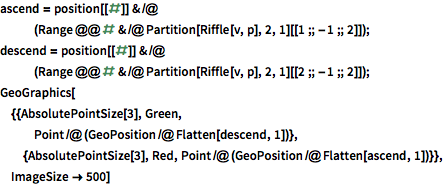

Visualisieren Sie die Bergauf-(rot) und Bergababschnitte (grün) der Radfahrt auf einer Karte der Radroute.

Die gesamte Wolfram-Language Eingabe zeigenEingabe verbergen

In[13]:=

X ascend = position[[#]] & /@ (Range @@ # & /@ Partition[Riffle[v, p], 2, 1][[1 ;; -1 ;; 2]]); descend = position[[#]] & /@ (Range @@ # & /@ Partition[Riffle[v, p], 2, 1][[2 ;; -1 ;; 2]]); GeoGraphics[{{AbsolutePointSize[3], Green, Point /@ (GeoPosition /@ Flatten[descend, 1])}, {AbsolutePointSize[ 3], Red, Point /@ (GeoPosition /@ Flatten[ascend, 1])}}, ImageSize -> 500]

Out[13]=
