Visualização: legendas, escalas, exclusões

Coloque escala em qualquer eixo

Aplique funções de escala para qualquer eixo.

mostre o input completo da Wolfram Language

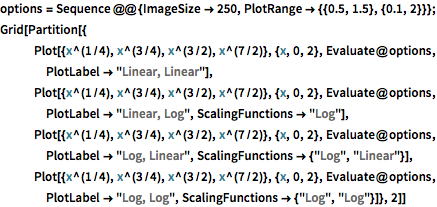

In[1]:=
Click for copyable input
options = Sequence @@ {ImageSize -> 250, PlotRange -> {{0.5, 1.5}, {0.1, 2}}}; Grid[Partition[{ Plot[{x^(1/4), x^(3/4), x^(3/2), x^(7/2)}, {x, 0, 2}, Evaluate@options, PlotLabel -> "Linear, Linear"], Plot[{x^(1/4), x^(3/4), x^(3/2), x^(7/2)}, {x, 0, 2}, Evaluate@options, PlotLabel -> "Linear, Log", ScalingFunctions -> "Log"], Plot[{x^(1/4), x^(3/4), x^(3/2), x^(7/2)}, {x, 0, 2}, Evaluate@options, PlotLabel -> "Log, Linear", ScalingFunctions -> {"Log", "Linear"}], Plot[{x^(1/4), x^(3/4), x^(3/2), x^(7/2)}, {x, 0, 2}, Evaluate@options, PlotLabel -> "Log, Log", ScalingFunctions -> {"Log", "Log"}]}, 2]]

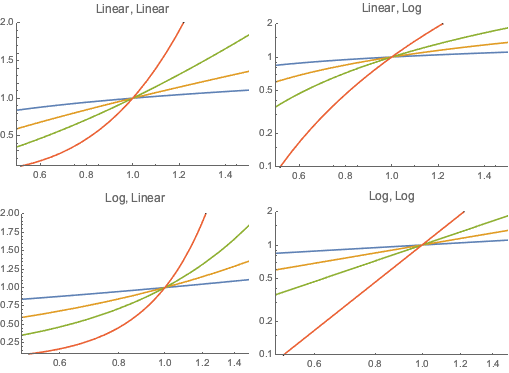

Out[1]=
