Riesgo de cáncer con base en actividad física usando un EntityStore

Un estudio publicado en 2016 en doi:10.1001/jamainternmed.2016.1548 analizó el riesgo de cáncer como una función del nivel de actividad física durante el tiempo libre. Este ejemplo combina Dataset, EntityStore y otras funcionalidades incorporadas con estos datos para explorar los tipos de cáncer que tienen la mayor reducción en el riesgo asociado con los altos niveles de actividad física en el tiempo libre.

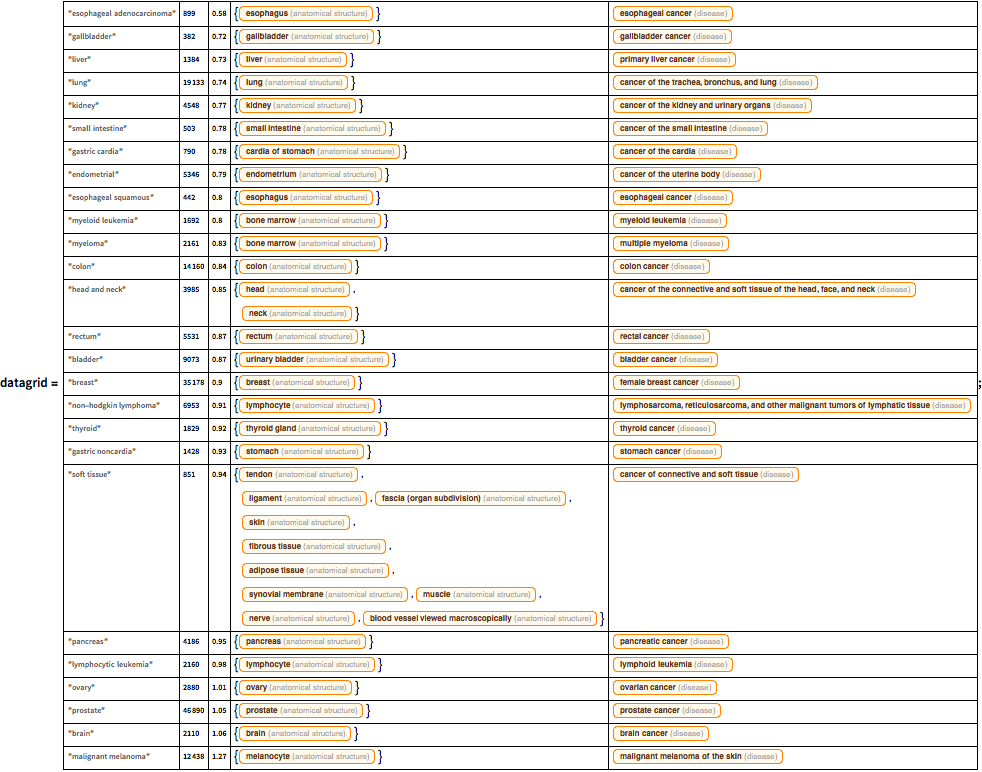

Cree un Dataset usando los datos del estudio.

In[1]:=

datagrid = \!\(\* TagBox[GridBox[{ {"\"\<esophageal adenocarcinoma\>\"", "899", "0.58", RowBox[{"{", TemplateBox[{"\"esophagus\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Esophagus\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"Esophagus\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"esophageal cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine150\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine150\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<gallbladder\>\"", "382", "0.72", RowBox[{"{", TemplateBox[{"\"gallbladder\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Gallbladder\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"Gallbladder\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"gallbladder cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine156.0\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine156.0\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<liver\>\"", "1384", "0.73", RowBox[{"{", TemplateBox[{"\"liver\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Liver\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Liver\\\"]\"", "\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"primary liver cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine155.0\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine155.0\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<lung\>\"", "19133", "0.74", RowBox[{"{", TemplateBox[{"\"lung\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Lung\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Lung\\\"]\"", "\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{ "\"cancer of the trachea, bronchus, and lung\"", RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine162\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine162\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<kidney\>\"", "4548", "0.77", RowBox[{"{", TemplateBox[{"\"kidney\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Kidney\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Kidney\\\"]\"", "\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{ "\"cancer of the kidney and urinary organs\"", RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine189\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine189\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<small intestine\>\"", "503", "0.78", RowBox[{"{", TemplateBox[{"\"small intestine\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"SmallIntestine\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"SmallIntestine\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{ "\"cancer of the small intestine\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine152\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine152\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<gastric cardia\>\"", "790", "0.78", RowBox[{"{", TemplateBox[{"\"cardia of stomach\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"CardiaOfStomach\""}], "]"}],"\"Entity[\\\"AnatomicalStructure\\\", \ \\\"CardiaOfStomach\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"cancer of the cardia\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine151.0\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine151.0\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<endometrial\>\"", "5346", "0.79", RowBox[{"{", TemplateBox[{"\"endometrium\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Endometrium\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"Endometrium\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"cancer of the uterine body\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine182\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine182\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<esophageal squamous\>\"", "442", "0.8", RowBox[{"{", TemplateBox[{"\"esophagus\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Esophagus\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"Esophagus\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"esophageal cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine150\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine150\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<myeloid leukemia\>\"", "1692", "0.8", RowBox[{"{", TemplateBox[{"\"bone marrow\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"BoneMarrow\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"BoneMarrow\\\"]\ \"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"myeloid leukemia\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine205\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine205\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<myeloma\>\"", "2161", "0.83", RowBox[{"{", TemplateBox[{"\"bone marrow\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"BoneMarrow\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"BoneMarrow\\\"]\ \"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"multiple myeloma\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine203.0\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine203.0\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<colon\>\"", "14160", "0.84", RowBox[{"{", TemplateBox[{"\"colon\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Colon\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Colon\\\"]\"", "\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"colon cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine153\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine153\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<head and neck\>\"", "3985", "0.85", RowBox[{"{", RowBox[{ TemplateBox[{"\"head\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Head\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Head\\\"]\"", "\"anatomical structure\""}, "Entity"], ",", TemplateBox[{"\"neck\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Neck\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Neck\\\"]\"", "\"anatomical structure\""}, "Entity"]}], "}"}], TemplateBox[{ "\:f3b5cancer of the connective and soft tissue of the head, \ face, and neck\:f3b5",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine171.0\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine171.0\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<rectum\>\"", "5531", "0.87", RowBox[{"{", TemplateBox[{"\"rectum\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Rectum\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Rectum\\\"]\"", "\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"rectal cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine154.1\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine154.1\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<bladder\>\"", "9073", "0.87", RowBox[{"{", TemplateBox[{"\"urinary bladder\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"UrinaryBladder\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"UrinaryBladder\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"bladder cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine188\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine188\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<breast\>\"", "35178", "0.9", RowBox[{"{", TemplateBox[{"\"breast\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Breast\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Breast\\\"]\"", "\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"female breast cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine174\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine174\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<non-hodgkin lymphoma\>\"", "6953", "0.91", RowBox[{"{", TemplateBox[{"\"lymphocyte\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Lymphocyte\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Lymphocyte\\\"]\ \"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{ "\"lymphosarcoma, reticulosarcoma, and other malignant \ tumors of lymphatic tissue\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine200\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine200\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<thyroid\>\"", "1829", "0.92", RowBox[{"{", TemplateBox[{"\"thyroid gland\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"ThyroidGland\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"ThyroidGland\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"thyroid cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine193\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine193\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<gastric noncardia\>\"", "1428", "0.93", RowBox[{"{", TemplateBox[{"\"stomach\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Stomach\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Stomach\\\"]\"", "\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"stomach cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine151\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine151\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<soft tissue\>\"", "851", "0.94", RowBox[{"{", RowBox[{ TemplateBox[{"\"tendon\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Tendon\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Tendon\\\"]\"", "\"anatomical structure\""}, "Entity"], ",", TemplateBox[{"\"ligament\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"SetOfLigaments\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"SetOfLigaments\ \\\"]\"","\"anatomical structure\""}, "Entity"], ",", TemplateBox[{"\"fascia (organ subdivision)\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"FasciaOrganSubdivision\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"FasciaOrganSubdivision\\\"]\"","\"anatomical structure\""}, "Entity"], ",", TemplateBox[{"\"skin\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Skin\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Skin\\\"]\"", "\"anatomical structure\""}, "Entity"], ",", TemplateBox[{"\"fibrous tissue\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"FibrousTissue\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"FibrousTissue\\\"]\"","\"anatomical structure\""}, "Entity"], ",", TemplateBox[{"\"adipose tissue\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"AdiposeTissue\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"AdiposeTissue\\\"]\"","\"anatomical structure\""}, "Entity"], ",", TemplateBox[{"\"synovial membrane\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"SynovialMembrane\""}], "]"}],"\"Entity[\\\"AnatomicalStructure\\\", \ \\\"SynovialMembrane\\\"]\"","\"anatomical structure\""}, "Entity"], ",", TemplateBox[{"\"muscle\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Muscle\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Muscle\\\"]\"", "\"anatomical structure\""}, "Entity"], ",", TemplateBox[{"\"nerve\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Nerve\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Nerve\\\"]\"", "\"anatomical structure\""}, "Entity"], ",", TemplateBox[{ "\"blood vessel viewed macroscopically\"", RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"BloodVesselViewedMacroscopically\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"BloodVesselViewedMacroscopically\\\"]\"", "\"anatomical structure\""}, "Entity"]}], "}"}], TemplateBox[{ "\"cancer of connective and soft tissue\"", RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine171\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine171\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<pancreas\>\"", "4186", "0.95", RowBox[{"{", TemplateBox[{"\"pancreas\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Pancreas\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"Pancreas\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"pancreatic cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine157\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine157\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<lymphocytic leukemia\>\"", "2160", "0.98", RowBox[{"{", TemplateBox[{"\"lymphocyte\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Lymphocyte\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Lymphocyte\\\"]\ \"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"lymphoid leukemia\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine204\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine204\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<ovary\>\"", "2880", "1.01", RowBox[{"{", TemplateBox[{"\"ovary\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Ovary\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Ovary\\\"]\"", "\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"ovarian cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine183.0\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine183.0\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<prostate\>\"", "46890", "1.05", RowBox[{"{", TemplateBox[{"\"prostate\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Prostate\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \ \\\"Prostate\\\"]\"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"prostate cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine185\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine185\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<brain\>\"", "2110", "1.06", RowBox[{"{", TemplateBox[{"\"brain\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Brain\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Brain\\\"]\"", "\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{"\"brain cancer\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine191\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine191\\\"]\"", "\"disease\""}, "Entity"]}, {"\"\<malignant melanoma\>\"", "12438", "1.27", RowBox[{"{", TemplateBox[{"\"melanocyte\"",RowBox[{"Entity", "[", RowBox[{"\"AnatomicalStructure\"", ",", "\"Melanocyte\""}], "]"}], "\"Entity[\\\"AnatomicalStructure\\\", \\\"Melanocyte\\\"]\ \"","\"anatomical structure\""}, "Entity"], "}"}], TemplateBox[{ "\"malignant melanoma of the skin\"",RowBox[{"Entity", "[", RowBox[{"\"Disease\"", ",", "\"ICDNine172\""}], "]"}], "\"Entity[\\\"Disease\\\", \\\"ICDNine172\\\"]\"", "\"disease\""}, "Entity"]} }, AutoDelete->False, BaseStyle->8, GridBoxAlignment->{ "Columns" -> {{Left}}, "ColumnsIndexed" -> {}, "Rows" -> {}, "RowsIndexed" -> {}, "Items" -> {}, "ItemsIndexed" -> {}}, GridBoxDividers->{ "Columns" -> {{True}}, "ColumnsIndexed" -> {}, "Rows" -> {{True}}, "RowsIndexed" -> {}, "Items" -> {}, "ItemsIndexed" -> {}}, GridBoxItemSize->{ "Columns" -> {{Automatic}}, "ColumnsIndexed" -> {}, "Rows" -> {{Automatic}}, "RowsIndexed" -> {}, "Items" -> {}, "ItemsIndexed" -> {}}], "Grid"]\);

In[2]:=

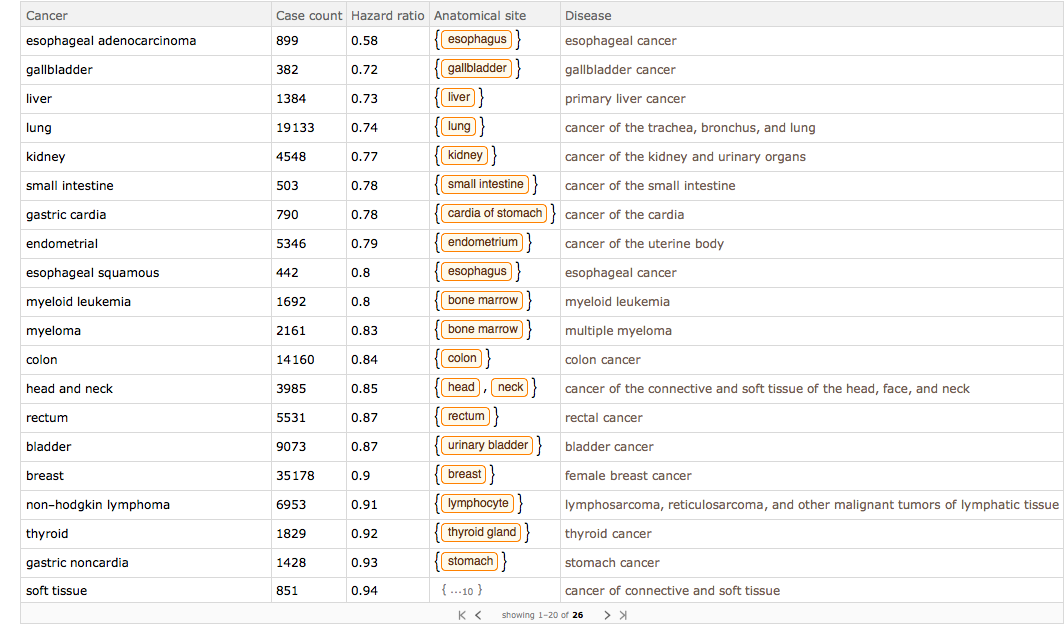

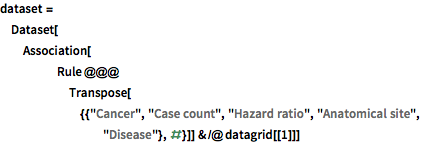

dataset = Dataset[Association[ Rule @@@ Transpose[{{"Cancer", "Case count", "Hazard ratio", "Anatomical site", "Disease"}, #}]] & /@ datagrid[[1]]]

Out[2]=

Extraiga el número total de casos y la media de tasa de riesgo.

In[3]:=

dataset[Total, "Case count"]

Out[3]=

In[4]:=

dataset[Mean, "Hazard ratio"]

Out[4]=

Almacene las entidades de cáncer personalizadas y sus datos en un almacén de entidades.

In[5]:=

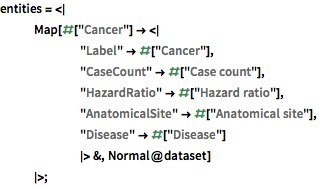

entities = <| Map[#["Cancer"] -> <| "Label" -> #["Cancer"], "CaseCount" -> #["Case count"], "HazardRatio" -> #["Hazard ratio"], "AnatomicalSite" -> #["Anatomical site"], "Disease" -> #["Disease"] |> &, Normal@dataset] |>;

In[6]:=

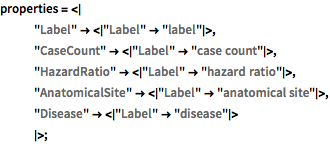

properties = <| "Label" -> <|"Label" -> "label"|>, "CaseCount" -> <|"Label" -> "case count"|>, "HazardRatio" -> <|"Label" -> "hazard ratio"|>, "AnatomicalSite" -> <|"Label" -> "anatomical site"|>, "Disease" -> <|"Label" -> "disease"|> |>;

In[7]:=

store = EntityStore["Cancer" -> <| "Label" -> "cancer", "Entities" -> entities, "Properties" -> properties |>]

Out[7]=

Registre el almacén para esta sesión.

In[8]:=

PrependTo[$EntityStores, store];

Recupere entidades y propiedades disponibles en el almacén de entidades.

In[9]:=

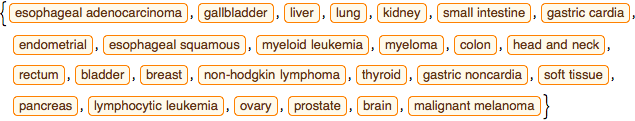

EntityList["Cancer"]

Out[9]=

In[10]:=

EntityValue["Cancer", "Properties"]

Out[10]=

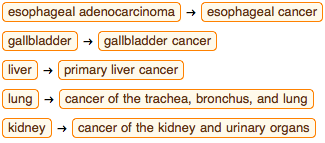

Muestre las enfermedades asociadas con cáncer.

In[11]:=

EntityValue["Cancer", "Disease", "EntityAssociation"] // Take[#, 5] & // Normal // Column

Out[11]=

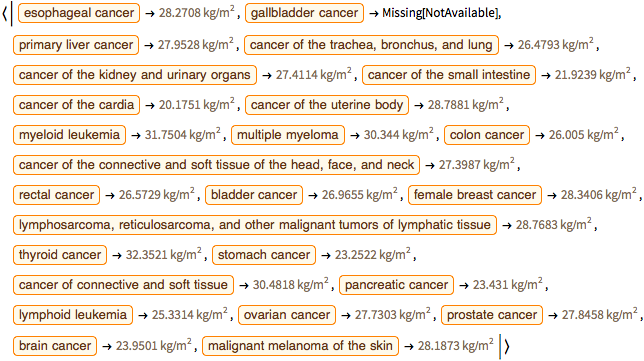

Recupere la información del índice de masa muscular (BMI) del almacén de entidades.

In[12]:=

bmi = EntityValue[EntityValue["Cancer", "Disease"], EntityProperty["Disease", "BodyMassIndexMean"], "EntityAssociation"]

Out[12]=

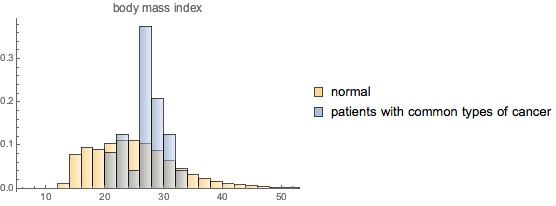

Cree un histograma de BMI para grupos de pacientes normales y pacientes con tipos comunes de cáncer.

In[13]:=

Histogram[{MedicalTestData["BodyMassIndex", "DistributionData"][[2, 1]], bmi}, Automatic, "Probability", ChartElementFunction -> "FadingRectangle", PlotLabel -> "body mass index", ChartLegends -> {"normal", "patients with common types of cancer"}]

Out[13]=

Recupere la información acerca de la tasa de riesgos asociada con la alta o baja actividad física.

In[14]:=

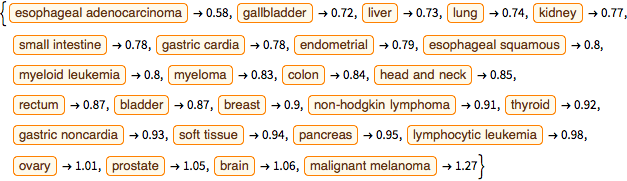

hr = Normal[EntityValue["Cancer", "HazardRatio", "EntityAssociation"]]

Out[14]=

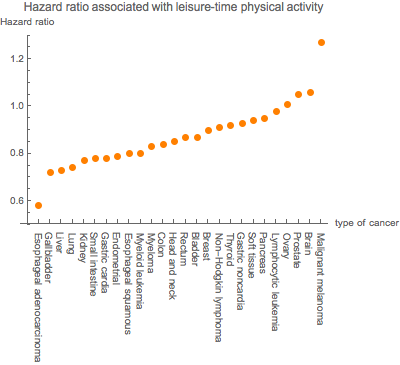

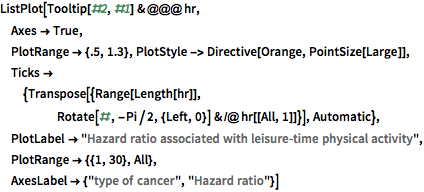

Grafique el tipo de cáncer vs. la tasa de riesgo asociada con la alta o baja actividad física.

In[15]:=

ListPlot[Tooltip[#2, #1] & @@@ hr, Axes -> True, PlotRange -> {.5, 1.3}, PlotStyle -> Directive[Orange, PointSize[Large]], Ticks -> {Transpose[{Range[Length[hr]], Rotate[#, -Pi/2, {Left, 0}] & /@ hr[[All, 1]]}], Automatic}, PlotLabel -> "Hazard ratio associated with leisure\[Hyphen]time physical \ activity", PlotRange -> {{1, 30}, All}, AxesLabel -> {"type of cancer", "Hazard ratio"}]

Out[15]=

Utilice una clase de entidades implícitamente definida para encontrar los tipos de cáncer en donde la actividad física en el tiempo libre está asociada con la reducción del riesgo en más de 20%.

In[16]:=

TextGrid[EntityValue[ EntityClass[ "Cancer", {"HazardRatio" -> LessThan[1 - 0.2]}], {"Entity", "HazardRatio"}], Dividers -> All, Background -> {Automatic, {{LightBlue, None}}}] // TraditionalForm

Out[16]//TraditionalForm=
