一般的な非線形系の例

制御入力が非線形的に現れる物理系はかなりまれである．しかしそれらは，昇降舵，補助翼，方向舵の制御曲面が航空力学的力と航空機のモーメントに非線形に影響を与える航空機力学の高忠実度モデリングでは欠かせない．

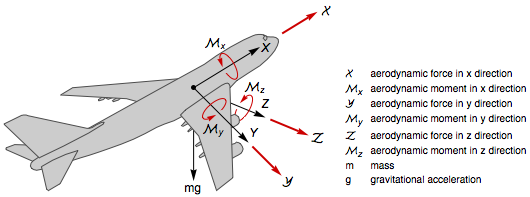

機体座標における自由度6のモデル．ここで  は慣性項である．

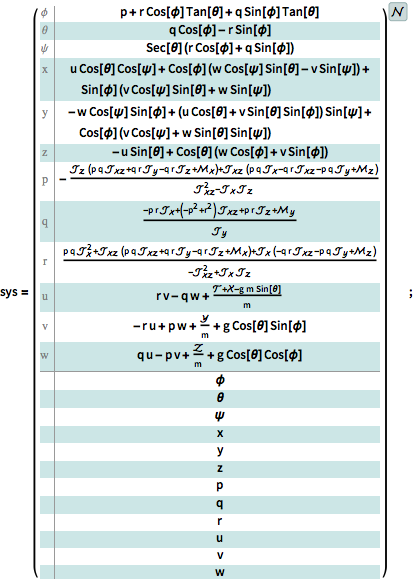

In[1]:=

sys = NonlinearStateSpaceModel[ {{p + r Cos[\[Phi]] Tan[\[Theta]] +
    q Sin[\[Phi]] Tan[\[Theta]], q Cos[\[Phi]] - r Sin[\[Phi]],
   Sec[\[Theta]] (r Cos[\[Phi]] + q Sin[\[Phi]]),
   u Cos[\[Theta]] Cos[\[Psi]] +
    Cos[\[Phi]] (w Cos[\[Psi]] Sin[\[Theta]] - v Sin[\[Psi]]) +
    Sin[\[Phi]] (v Cos[\[Psi]] Sin[\[Theta]] +
       w Sin[\[Psi]]), -w Cos[\[Psi]] Sin[\[Phi]] + (u Cos[\[Theta]] +
        v Sin[\[Theta]] Sin[\[Phi]]) Sin[\[Psi]] +
    Cos[\[Phi]] (v Cos[\[Psi]] +
       w Sin[\[Theta]] Sin[\[Psi]]), -u Sin[\[Theta]] +
    Cos[\[Theta]] (w Cos[\[Phi]] + v Sin[\[Phi]]), -((
    Subscript[\[ScriptCapitalJ], \[ScriptZ]] (p q Subscript[\
\[ScriptCapitalJ], \[ScriptX]\[ScriptZ]] +
        q r Subscript[\[ScriptCapitalJ], \[ScriptY]] -
        q r Subscript[\[ScriptCapitalJ], \[ScriptZ]] +
        Subscript[\[ScriptCapitalM], \[ScriptX]]) +
     Subscript[\[ScriptCapitalJ], \[ScriptX]\[ScriptZ]] (p q \
Subscript[\[ScriptCapitalJ], \[ScriptX]] -
        q r Subscript[\[ScriptCapitalJ], \[ScriptX]\[ScriptZ]] -
        p q Subscript[\[ScriptCapitalJ], \[ScriptY]] +
        Subscript[\[ScriptCapitalM], \[ScriptZ]]))/(\!\(
\*SubsuperscriptBox[\(\[ScriptCapitalJ]\), \(\[ScriptX]\[ScriptZ]\), \
\(2\)] - \(
\*SubscriptBox[\(\[ScriptCapitalJ]\), \(\[ScriptX]\)]\
\*SubscriptBox[\(\[ScriptCapitalJ]\), \(\[ScriptZ]\)]\)\))), (-p r \
Subscript[\[ScriptCapitalJ], \[ScriptX]] + (-p^2 +
       r^2) Subscript[\[ScriptCapitalJ], \[ScriptX]\[ScriptZ]] +
    p r Subscript[\[ScriptCapitalJ], \[ScriptZ]] +
    Subscript[\[ScriptCapitalM], \[ScriptY]])/
   Subscript[\[ScriptCapitalJ], \[ScriptY]], (p q
\!\(\*SubsuperscriptBox[\(\[ScriptCapitalJ]\), \(\[ScriptX]\), \(2\)]\
\) + Subscript[\[ScriptCapitalJ], \[ScriptX]\[ScriptZ]] (p q \
Subscript[\[ScriptCapitalJ], \[ScriptX]\[ScriptZ]] +
       q r Subscript[\[ScriptCapitalJ], \[ScriptY]] -
       q r Subscript[\[ScriptCapitalJ], \[ScriptZ]] +
       Subscript[\[ScriptCapitalM], \[ScriptX]]) +
    Subscript[\[ScriptCapitalJ], \[ScriptX]] (-q r Subscript[\
\[ScriptCapitalJ], \[ScriptX]\[ScriptZ]] -
       p q Subscript[\[ScriptCapitalJ], \[ScriptY]] +
       Subscript[\[ScriptCapitalM], \[ScriptZ]]))/(-
\!\(\*SubsuperscriptBox[\(\[ScriptCapitalJ]\), \(\[ScriptX]\[ScriptZ]\
\), \(2\)]\) +
    Subscript[\[ScriptCapitalJ], \[ScriptX]]
      Subscript[\[ScriptCapitalJ], \[ScriptZ]]),
   r v - q w + (\[ScriptCapitalT] + \[ScriptCapitalX] -
     g m Sin[\[Theta]])/m, -r u + p w + \[ScriptCapitalY]/m +
    g Cos[\[Theta]] Sin[\[Phi]],
   q u - p v + \[ScriptCapitalZ]/m +
    g Cos[\[Theta]] Cos[\[Phi]]}, {\[Phi], \[Theta], \[Psi], x, y, z,
   p, q, r, u, v, w}}, {\[Phi], \[Theta], \[Psi], x, y, z, p, q, r, u,
    v, w}, {Subscript[\[ScriptCapitalM], \[ScriptX]],
    Subscript[\[ScriptCapitalM], \[ScriptY]],
    Subscript[\[ScriptCapitalM], \[ScriptZ]], \[ScriptCapitalX], \
\[ScriptCapitalY], \[ScriptCapitalZ]}, {Automatic, Automatic,
   Automatic, Automatic, Automatic, Automatic, Automatic, Automatic,
   Automatic, Automatic, Automatic, Automatic}, Automatic ,
   SamplingPeriod -> None];

縦運動は状態，，，の運動である．
