# Evaluate a Linear Controller Design Using Nonlinear Simulation

Starting with a nonlinear model, design a linear controller and evaluate the performance of the controller on the nonlinear system.

The model of an inverted pendulum is nonlinear, but linear in the input force .

 In[1]:= Xeqns = {(M + m) x''[t] + m l Sin[\[Theta][t]] \[Theta]'[t]^2 - m l Cos[\[Theta][t]] \[Theta]''[t] == F[t], l \[Theta]''[t] - x''[t] Cos[\[Theta][t]] - g Sin[\[Theta][t]] == 0};
 In[2]:= Xpars = {l -> 1, m -> 0.2, M -> 0.3, g -> 9.8};

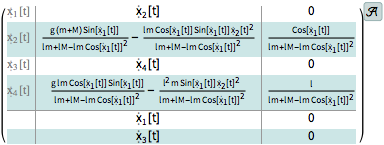

 In[3]:= Xpend = AffineStateSpaceModel[ eqns, {\[Theta][t], x[t]}, {F[t]}, {\[Theta][t], x[t]}, t]
 Out[3]=

Design a controller based on the linear model.

 In[4]:= Xk = StateFeedbackGains[ StateSpaceModel[pend /. pars], {-2, -3 + I, -3 - I, -4}]
 Out[4]=

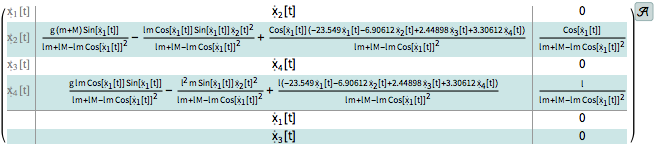

Connect the linear controller to the nonlinear model.

 In[5]:= Xcsys = SystemsModelStateFeedbackConnect[pend, k]
 Out[5]=

Simulate the nonlinear closed-loop system.

 In[6]:= Xres = OutputResponse[{csys /. pars, {40 \[Degree], 0, 0, 0}}, 0, {t, 0, 4}];
 In[7]:= XPlot[res, {t, 0, 4}, PlotRange -> All, PlotLegends -> {\[Theta][t], x[t]}]
 Out[7]=
