Examples of Affine Systems

The control inputs appear linearly in a wide variety of applications, and thus many systems can be modeled effectively using AffineStateSpaceModel.

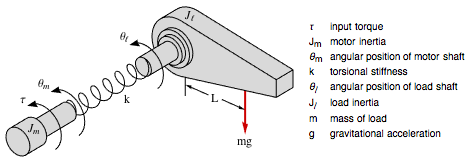

The model of a flexible joint. »

In[1]:=
Click for copyable input
X

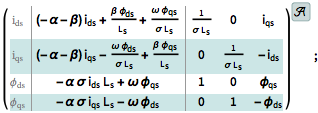

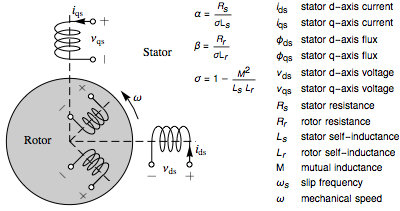

A model for an induction motor in d-q (direct-quadrature) rotating coordinates with inputs as inputs. »

In[2]:=
Click for copyable input
X

A model for a room cooling system with the air and water flow as inputs. »

In[3]:=
Click for copyable input
X

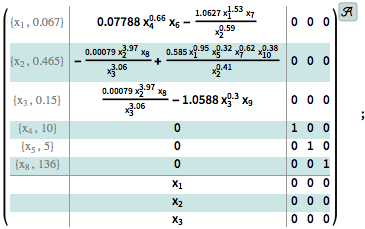

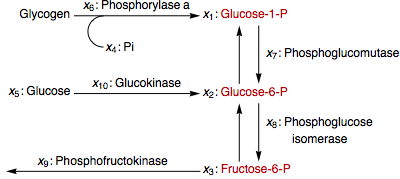

The model of a glycolytic-glycogenolytic pathway where the rates of metabolites , , and are taken as the inputs, and , , , and are kept constant. »

In[4]:=
Click for copyable input
X
