Linhas de referência em anotações: Novos Recursos do Wolfram Language 11

Linhas de referência em anotações

Determine uma curva de referência.

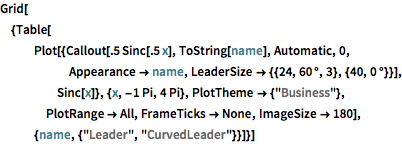

In[1]:=

Grid[{Table[
   Plot[{Callout[.5 Sinc[.5 x], ToString[name], Automatic, 0,
      Appearance -> name,
      LeaderSize -> {{24, 60 \[Degree], 3}, {40, 0 \[Degree]}}],
     Sinc[x]}, {x, -1 Pi, 4 Pi}, PlotTheme -> {"Business"},
    PlotRange -> All, FrameTicks -> None,
    ImageSize -> 180], {name, {"Leader", "CurvedLeader"}}]}]

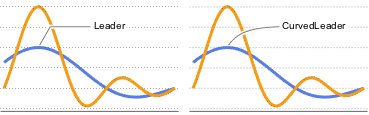

Out[1]=

Especifique o comprimento da linha de referência.

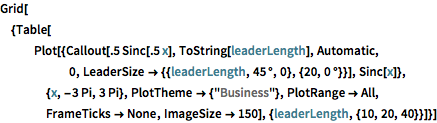

In[2]:=

Grid[{Table[
   Plot[{Callout[.5 Sinc[.5 x], ToString[leaderLength], Automatic, 0,
      LeaderSize -> {{leaderLength, 45 \[Degree], 0}, {20,
         0 \[Degree]}}], Sinc[x]}, {x, -3 Pi, 3 Pi},
    PlotTheme -> {"Business"}, PlotRange -> All, FrameTicks -> None,
    ImageSize -> 150], {leaderLength, {10, 20, 40}}]}]

Out[2]=

Especifique o comprimento da linha que encosta na curva.

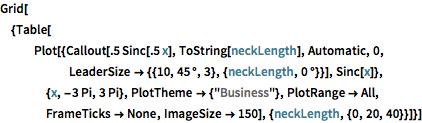

In[3]:=

Grid[{Table[
   Plot[{Callout[.5 Sinc[.5 x], ToString[neckLength], Automatic, 0,
      LeaderSize -> {{10, 45 \[Degree], 3}, {neckLength,
         0 \[Degree]}}], Sinc[x]}, {x, -3 Pi, 3 Pi},
    PlotTheme -> {"Business"}, PlotRange -> All, FrameTicks -> None,
    ImageSize -> 150], {neckLength, {0, 20, 40}}]}]

Out[3]=

Especifique o ângulo da linha de referência.

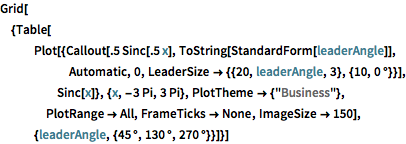

In[4]:=

Grid[{Table[
   Plot[{Callout[.5 Sinc[.5 x], ToString[StandardForm[leaderAngle]],
      Automatic, 0,
      LeaderSize -> {{20, leaderAngle, 3}, {10, 0 \[Degree]}}],
     Sinc[x]}, {x, -3 Pi, 3 Pi}, PlotTheme -> {"Business"},
    PlotRange -> All, FrameTicks -> None,
    ImageSize -> 150], {leaderAngle, {45 \[Degree], 130 \[Degree],
     270 \[Degree]}}]}]

Out[4]=

Especifique o ângulo da linha que encosta da curva.

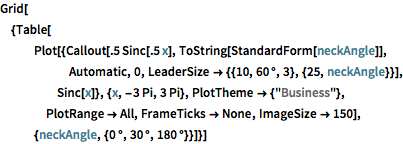

In[5]:=

Grid[{Table[
   Plot[{Callout[.5 Sinc[.5 x], ToString[StandardForm[neckAngle]],
      Automatic, 0,
      LeaderSize -> {{10, 60 \[Degree], 3}, {25, neckAngle}}],
     Sinc[x]}, {x, -3 Pi, 3 Pi}, PlotTheme -> {"Business"},
    PlotRange -> All, FrameTicks -> None,
    ImageSize -> 150], {neckAngle, {0 \[Degree], 30 \[Degree],
     180 \[Degree]}}]}]

Out[5]=

Escolhe o estilo da linha de referência.

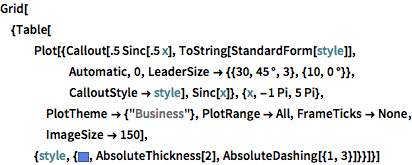

In[6]:=

Grid[{Table[
   Plot[{Callout[.5 Sinc[.5 x], ToString[StandardForm[style]],
      Automatic, 0,
      LeaderSize -> {{30, 45 \[Degree], 3}, {10, 0 \[Degree]}},
      CalloutStyle -> style], Sinc[x]}, {x, -1 Pi, 5 Pi},
    PlotTheme -> {"Business"}, PlotRange -> All, FrameTicks -> None,
    ImageSize -> 150], {style, {RGBColor[0.34398, 0.49112, 0.89936],
     AbsoluteThickness[2], AbsoluteDashing[{1, 3}]}}]}]

Out[6]=

Escolha o estilo da vizinhança do ponto de interseção da linha de referência com o gráfico.

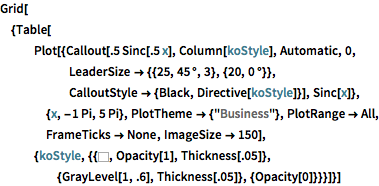

In[7]:=

Grid[{Table[
   Plot[{Callout[.5 Sinc[.5 x], Column[koStyle], Automatic, 0,
      LeaderSize -> {{25, 45 \[Degree], 3}, {20, 0 \[Degree]}},
      CalloutStyle -> {Black, Directive[koStyle]}],
     Sinc[x]}, {x, -1 Pi, 5 Pi}, PlotTheme -> {"Business"},
    PlotRange -> All, FrameTicks -> None,
    ImageSize ->
     150], {koStyle, {{GrayLevel[1], Opacity[1],
      Thickness[.05]}, {GrayLevel[1, .6],
      Thickness[.05]}, {Opacity[0]}}}]}]

Out[7]=
