7 | Colors and Styles |

The Wolfram Language doesn’t just handle things like numbers. It also for example handles things like colors. It lets you refer to common colors by their names.

Red represents the color red:

In[1]:= |

Out[1]= |

In[2]:= |

Out[2]= |

You can do operations on colors. ColorNegate “negates” a color, giving the complementary color. Blend blends a list of colors together.

Negating the color yellow gives blue:

In[3]:= |

Out[3]= |

In[4]:= |

Out[4]= |

You can specify a color by saying how much red, green and blue it contains. The function RGBColor lets you do that, giving the amount of each color, from 0 to 1.

This gives maximum red, with no green or blue:

In[5]:= |

Out[5]= |

Maximum red and green gives yellow:

In[6]:= |

Out[6]= |

This gives a table of colors with maximum red and varying levels of green:

In[7]:= |

Out[7]= |

It’s often convenient to specify colors not directly in terms of red, green and blue, but for example instead in terms of

*hue*. The function Hue lets you do this.A hue of 0.5 corresponds to cyan:

In[8]:= |

Out[8]= |

In[9]:= |

Out[9]= |

Sometimes you may want to just pick a random color. RandomColor lets you do this. When you say RandomInteger[10], you’re asking to generate a random integer up to 10. But for a random color you don’t have to specify a range, so you can just write RandomColor[]—not giving any explicit input to the function.

Generate a random color:

In[10]:= |

Out[10]= |

Make a table of 30 random colors:

In[11]:= |

Out[11]= |

Blending together lots of random colors usually gives something muddy:

In[12]:= |

Out[12]= |

This gives the number 1000, styled in red:

In[13]:= |

Out[13]= |

Here are 30 random integers, styled in random colors:

In[14]:= |

Out[14]= |

Show x styled in 30-point type:

In[15]:= |

Out[15]= |

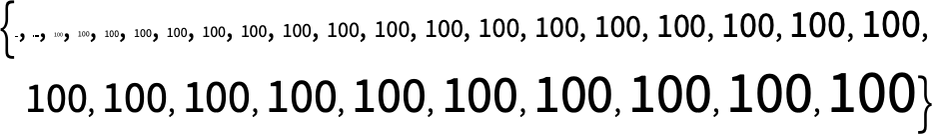

This styles the number 100 in a sequence of different sizes:

In[16]:= |

Out[16]= |

You can combine color and size styling; here’s x in 25 random colors and sizes:

In[17]:= |

Out[17]= |

Vocabulary

Red, Green, Blue, Yellow, Orange, Pink, Purple, ... | colors | |

RGBColor[0.4,0.7,0.3] | red, green, blue color | |

Hue[0.8] | color specified by hue | |

RandomColor[ ] | randomly chosen color | |

ColorNegate[Red] | negate a color (complement) | |

Blend[{Red,Blue}] | blend a list of colors | |

Style[x,Red] | style with a color | |

Style[x,20] | style with a size | |

Style[x,20,Red] | style with a size and color |

7.1Make a list of red, yellow and green. »

7.3Compute the negation of the color orange. »

7.4Make a list of colors with hues varying from 0 to 1 in steps of 0.02. »

7.5Make a list of colors with maximum red and blue, but with green varying from 0 to 1 in steps of 0.05. »

7.8Make a list of numbers from 0 to 1 in steps of 0.1, each with a hue equal to its value. »

7.9Make a purple color swatch of size 100. »

7.10Make a list of red swatches with sizes from 10 to 100 in steps of 10. »

7.11Display the number 999 in red at size 100. »

7.12Make a list of the first 10 squares in which each value is styled at its size. »

7.13Use Part and RandomInteger to make a length-100 list in which each element is randomly Red, Yellow or Green. »

7.14Use Part to make a list of the first 50 digits of 2^1000, in which each digit has a size equal to 3 times its value. »

+7.1Create a column of colors with hues varying from 0 to 1 in steps of 0.05. »

+7.2Make a list of colors varying from red to green with green components x varying from 0 to 1 in steps of 0.05 and with red components 1-x. »

+7.3Create a list of colors with no red or blue, and with green varying from 0 to 1 and back down to 0 in increments of 0.1. »

+7.4Blend the color red and its negation. »

+7.5Blend a list of colors with hues from 0 to 1 in increments of 0.1. »

+7.6Blend the color red with white, then blend it again with white. »

+7.7Make a list of 100 random colors. »

+7.8Make columns of the numbers 1 through 10, rendered as red and green in each column. »

+7.9Make columns of the numbers 1 through 10, rendered as plain, bold and italic in each column. »

Q&A

What named colors does the Wolfram Language have?

Red, Green, Blue, Black, White, Gray, Yellow, Brown, Orange, Pink, Purple, LightRed, etc. In Section 16 we’ll see how to use Ctrl+= to enter any color name in plain English.

Basically because that’s how we humans perceive colors: there are three kinds of cells in our eyes that are roughly sensitive respectively to red, green and blue components of light. (Some other organisms work differently.)

What does color negation do?

It generates

*complementary colors*, defined by computing 1−*value*(one minus the value) for each RGB component. If you negate the “display (emitted light) primaries” red, green, blue, you get the “print (reflected light) primaries” cyan, magenta, yellow.What is hue?

It’s a way of specifying what are often called

*pure colors*, independent of their tint, shade, saturation or brightness. Colors of different hues are often arranged around a*color wheel*. The RGB values for a particular hue are determined by a mathematical formula.Yes. A common one (implemented by Hue) is to use the combination of hue, saturation, and brightness. LABColor and XYZColor are other examples. GrayLevel represents shades of gray, with GrayLevel[0] being black and GrayLevel[1] being white.

Tech Notes

- The little squares of color used to display a color are usually called
*swatches*. - ChromaticityPlot and ChromaticityPlot3D plot lists of colors in color space.
- You can set lots of other style attributes in the Wolfram Language, like Bold, Italic and FontFamily.
