18Geocomputation
In[1]:=
Click for copyable input
Out[1]=

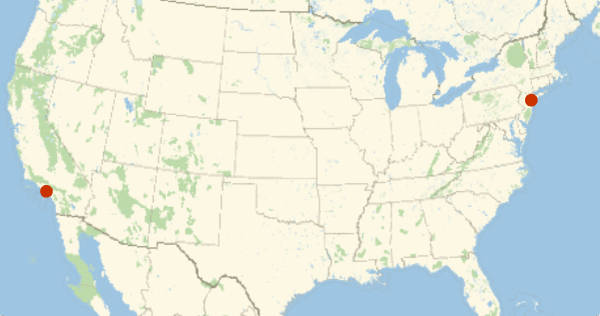

Plot New York and Los Angeles on a map:
In[2]:=
Click for copyable input
Out[2]=
In[3]:=
Click for copyable input
Out[3]=
In[4]:=
Click for copyable input
Out[4]=

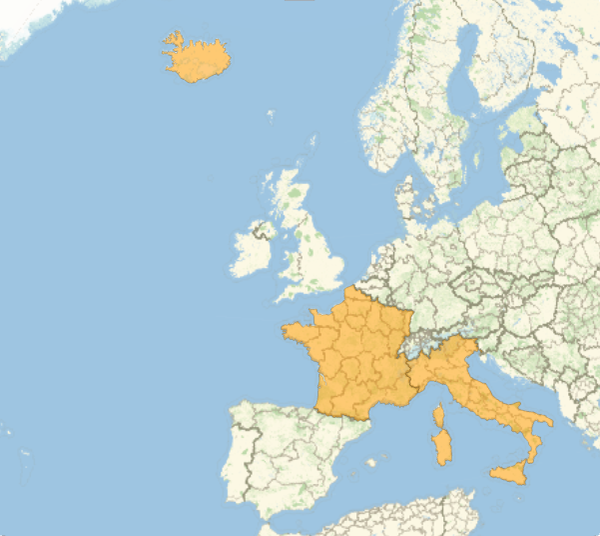

GeoListPlot is the analog for geography of ListPlot. GeoGraphics is the analog of Graphics.
In[5]:=
Click for copyable input
Out[5]=

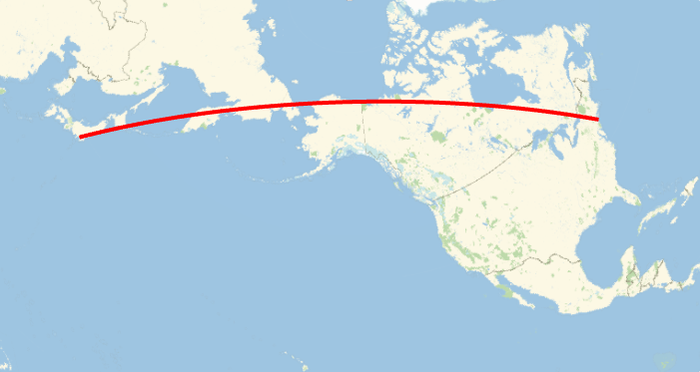

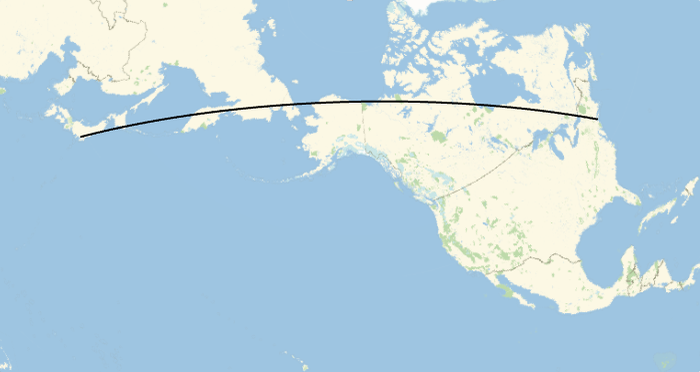

GeoPath represents a path on the surface of the Earth.
In[6]:=
Click for copyable input
Out[6]=
In[7]:=
Click for copyable input
Out[7]=

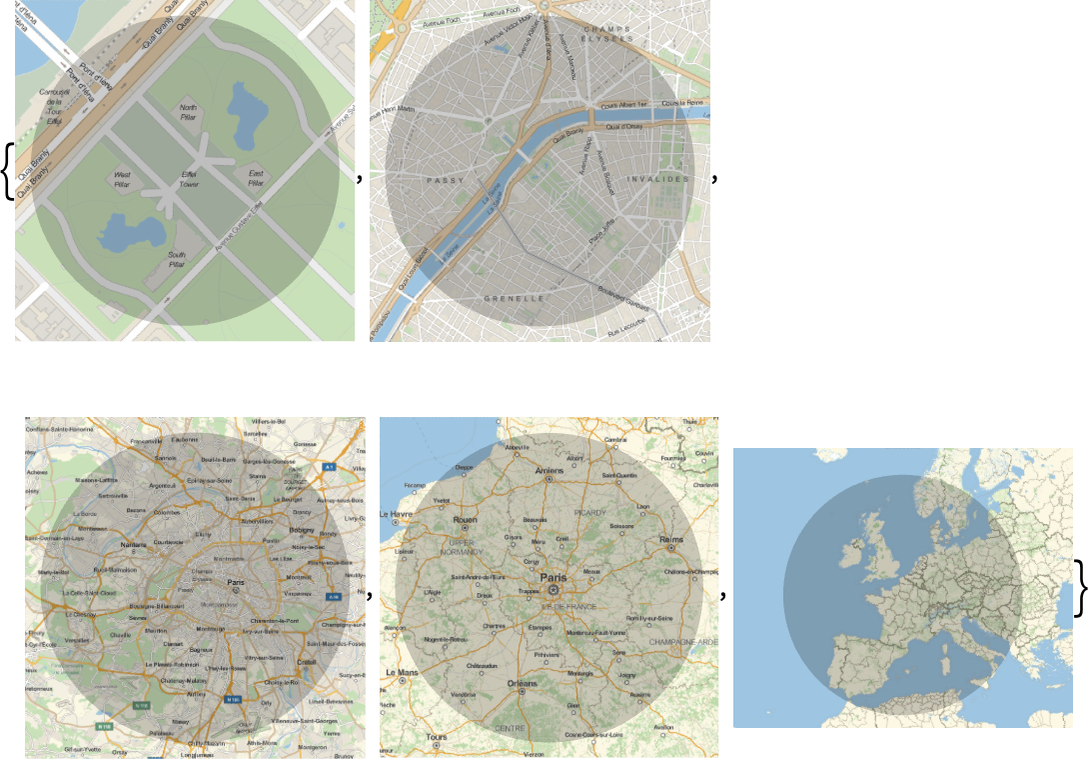

GeoDisk is the analog of Disk; you specify its center and its radius.

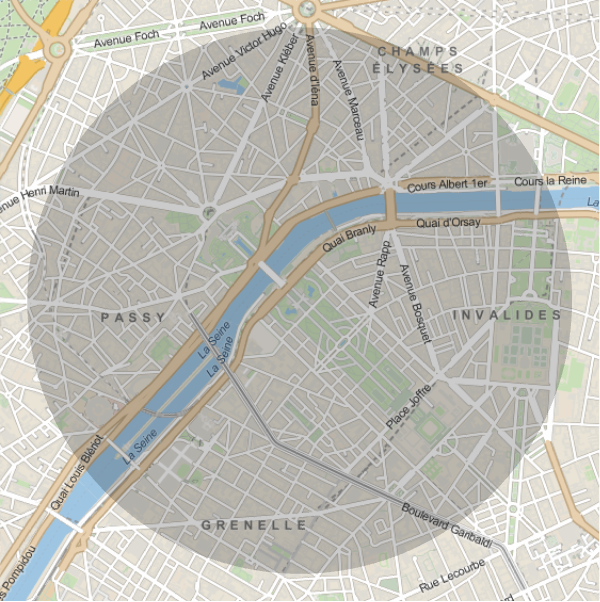

Show a 1-mile-radius disk around the Eiffel Tower:
In[8]:=
Click for copyable input
Out[8]=
In[9]:=
Click for copyable input
Out[9]=
GeoPosition gives a position on the Earth. The numbers it contains are longitude and latitudethe standard coordinates on the surface of the Earth.
Find the geo position of the Eiffel Tower:
In[10]:=
Click for copyable input
Out[10]=

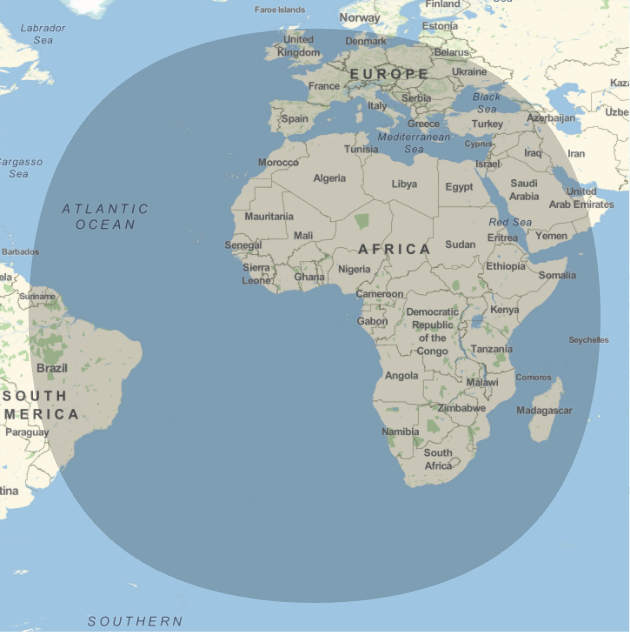

Draw a 4000-mile-radius disk around 0 latitude, 0 longitude:
In[11]:=
Click for copyable input
Out[11]=
GeoNearest finds whats nearest to a given place on the Earth. You tell it what type of thing to look for, and how many you want it to find.
Find the nearest 5 countries to 0 longitude, 0 latitude:
In[12]:=
Click for copyable input
Out[12]=
In[13]:=
Click for copyable input
Out[13]=
Find where your computer (or phone, etc.) thinks it is:
In[14]:=
Click for copyable input
Out[14]=
You can do computations with Here.
Compute how far it is to the Eiffel Tower:
In[15]:=
Click for copyable input
Out[15]=
In[16]:=
Click for copyable input
Out[16]=

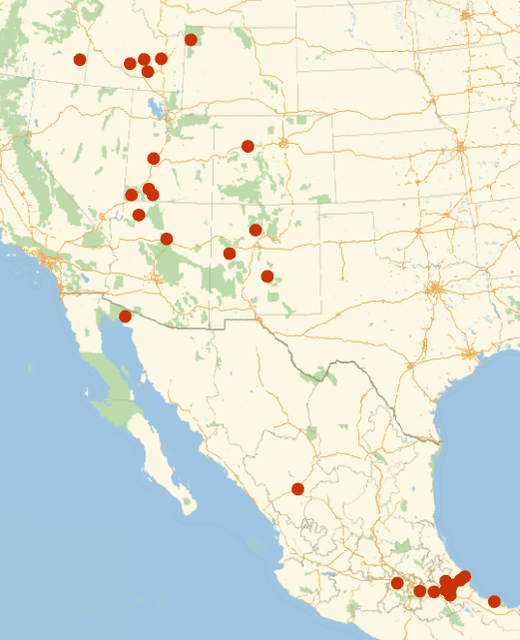

Plot volcanoes on a map:
In[17]:=
Click for copyable input
Out[17]=
GeoDistance[entity1,entity2] geo distance between entities
GeoListPlot[{entity1,entity2,...}] plot a list of entities on a map
GeoGraphics[...] map constructed from primitives
GeoPath[{entity1,entity2}] path between entities
GeoDisk[entity,r] disk with radius r around an entity
Here where your computer, phone, etc. thinks it is
GeoPosition[entity] geo position of an entity
GeoNearest["type",location,n] nearest n objects of a certain type to a location
18.1Find the distance from New York to London. »
Expected output:
Out[]=
18.2Divide the distance from New York to London by the distance from New York to San Francisco. »
Expected output:
Out[]=
18.3Find the distance from Sydney to Moscow in kilometers. »
Expected output:
Out[]=
18.4Generate a map of the United States. »
Expected output:
Out[]=
18.5Plot on a map Brazil, Russia, India and China. »
Expected output:
Out[]=
18.6Plot on a map the path from New York City to Beijing. »
Expected output:
Out[]=
18.7Plot a disk centered on the Great Pyramid, with radius 10 miles. »
Expected output:
Out[]=
18.8Plot a disk centered on New York with a radius large enough to just reach San Francisco. »
Expected output:
Out[]=
18.9Find the nearest 5 countries to the North Pole (GeoPosition["NorthPole"]). »
Expected output:
Out[]=
18.10Find the flags of the 3 countries nearest to latitude 45°, longitude 0°»
Expected output:
Out[]=
18.11Plot the 25 volcanoes closest to Rome. »
Expected output:
Out[]=
18.12Find the difference in latitude between New York and Los Angeles. »
Expected output:
Out[]=
+18.1Plot on a map the countries in NATO. »
Expected output:
Out[]=
+18.2Plot on a map a thick red line from Moscow to Beijing and a thick blue line from Washington, DC to London. »
Expected output:
Out[]=
+18.3Find the distance from 0 latitude, 0 longitude to the Eiffel Tower. »
Expected output:
Out[]=
+18.4Plot a disk styled red of radius 100 miles centered on Los Angeles. »
Expected output:
Out[]=
+18.5Make a list of plots showing disks with radii 1, 2 and 3 miles around the Empire State Building. »
Expected output:
Out[]=
+18.6Find the 5 countries nearest to New York City. »
Expected output:
Out[]=
+18.7Find the nearest ocean to Chicago. »
Expected output:
Out[]=
Q&A
Yes. Just use the GeoProjection option. There are more than 300 built-in projections to choose from. The default projection used in any particular case depends on the scale and location of the map.
It uses the function FindGeoLocation. On a mobile device, this will normally ask for your GPS position. On a computer, itll normally try to deduce your location from your internet addressthis wont always work correctly. You can always explicitly set your geo location by assigning a value to $GeoLocation.
Yes. Use TravelDirections. GeoDistance gives the direct shortest path; TravelDistance gives the path following roads, etc. TravelTime gives estimated travel time.
No. For example, the moon and Mars also work. Use the option GeoModel"Moon", etc.
