Differential Eigensystems

Obtain a Clamped Triangular Membrane's Symbolic Eigenfunctions

Specify a Laplacian operator.

In[1]:=
Click for copyable input
\[ScriptCapitalL] = -Laplacian[u[x, y], {x, y}];

Specify homogeneous Dirichlet boundary conditions.

In[2]:=
Click for copyable input
\[ScriptCapitalB] = DirichletCondition[u[x, y] == 0, True];

Find the four smallest eigenvalues and eigenfunctions of the operator in a triangle.

In[3]:=
Click for copyable input
{vals, funs} = DEigensystem[{\[ScriptCapitalL], \[ScriptCapitalB]}, u[x, y], {x, y} \[Element] Triangle[], 4];
In[4]:=
Click for copyable input
vals
Out[4]=

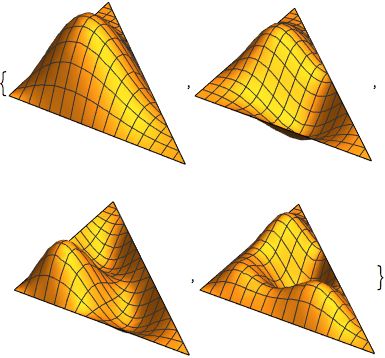

Visualize the eigenfunctions.

In[5]:=
Click for copyable input
Table[Plot3D[funs[[i]], {x, y} \[Element] Triangle[], Boxed -> False, Axes -> False, Method -> {"ShrinkWrap" -> True}], {i, 4}]
Out[5]=
