Differential Eigensystems

Compute Symbolic Eigenvalues

Specify a 1D Laplacian operator.

In[1]:=
Click for copyable input
\[ScriptCapitalL] = -Laplacian[u[x], {x}];

Specify a homogeneous Dirichlet boundary condition.

In[2]:=
Click for copyable input
\[ScriptCapitalB] = DirichletCondition[u[x] == 0, True];

Find expressions for the 5 smallest eigenvalues on the interval .

In[3]:=
Click for copyable input
DEigenvalues[{\[ScriptCapitalL], \[ScriptCapitalB]}, u[x], {x, a, b}, 5]
Out[3]=

Specify an Airy operator.

In[4]:=
Click for copyable input
\[ScriptCapitalL] = -Laplacian[u[x], {x}] + x u[x];

Find the 5 smallest eigenvalues and corresponding eigenfunctions.

In[5]:=
Click for copyable input
{vals, funs} = DEigensystem[{\[ScriptCapitalL], \[ScriptCapitalB]}, u[x], {x, 0, 1}, 5];

The eigenvalues are roots of a transcendental equation.

In[6]:=
Click for copyable input
vals[[1]] // TraditionalForm
Out[6]//TraditionalForm=

Compute a transcendental eigenvalue with high precision.

In[7]:=
Click for copyable input
N[vals[[1]], 500] // TraditionalForm
Out[7]//TraditionalForm=

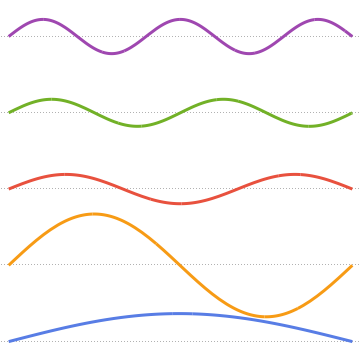

Visualize the eigenfunctions.

In[8]:=
Click for copyable input
Plot[Evaluate[funs + Range[5]], {x, 0, 1}, ImageSize -> Medium, PlotTheme -> {"Business", "Bare"}, AspectRatio -> 1]
Out[8]=
