Differential Eigensystems

Investigate a Laplace Equation on a Torus

Find the five smallest eigenvalues and eigenfunctions of a Laplace equation on a square torus with a Dirichlet constraint.

Specify periodic boundary conditions on a square of length 1.

In[1]:=
Click for copyable input
torusBCs = {u[0, y] == u[1, y], u[x, 0] == u[x, 1]};

Specify a value at the origin. By the periodic conditions, this must also be the value at the other three corners of the square.

In[2]:=
Click for copyable input
constraint = DirichletCondition[u[x, y] == 0, x == 0 && y == 0];

Compute the eigenvalues and eigenfunctions.

In[3]:=
Click for copyable input
{vals, funs} = NDEigensystem[ Join[{-Laplacian[u[x, y], {x, y}], constraint}, torusBCs], u[x, y], {x, y} \[Element] Rectangle[{0, 0}, {1, 1}], 4];

Inspect the eigenvalues.

In[4]:=
Click for copyable input
vals
Out[4]=

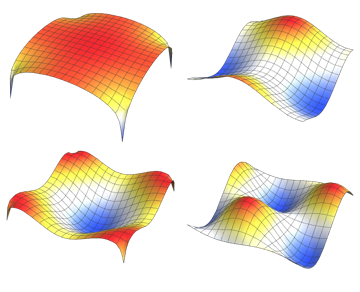

Visualize the eigenfunctions.

show complete Wolfram Language input
In[5]:=
Click for copyable input

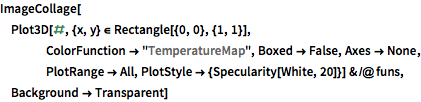

ImageCollage[ Plot3D[#, {x, y} \[Element] Rectangle[{0, 0}, {1, 1}], ColorFunction -> "TemperatureMap", Boxed -> False, Axes -> None, PlotRange -> All, PlotStyle -> {Specularity[White, 20]}] & /@ funs, Background -> Transparent]
Out[5]=
