使用反馈线性化的估计器设计

反馈线性化也支持用线性方法设计非线性估计器. 根据 Norrbin 模型并使用反馈线性化，估计体长为 、速度为 的船的偏航角 和偏航率 . »

In[1]:=

X pars = {Subscript[n, 3] -> 1, Subscript[n, 1] -> 1, Subscript[n, 2] -> 0, Subscript[n, 0] -> 0};

In[2]:=

X asys = AffineStateSpaceModel[(2 l/v) \[Psi]''[t] + Subscript[n, 3] \[Psi]'[t]^3 + Subscript[n, 2] \[Psi]'[t]^2 + Subscript[n, 1] \[Psi]'[t] + Subscript[n, 0] == (v/l) \[Delta][t], \[Psi][t], \[Delta][t], \[Psi][t], t] /. pars /. {l -> 45}

Out[2]=

模型可完全反馈线性化.

In[3]:=

X \[ScriptCapitalF] = FeedbackLinearize[asys]

Out[3]=

使用极点替换计算一组估计器的增益.

In[4]:=

X EstimatorGains[\[ScriptCapitalF]["LinearSystem"], {-2 + I, -2 - I}]

Out[4]=

组合非线性估计器.

In[5]:=

X EstimatorGains[\[ScriptCapitalF]["LinearSystem"], {-2 + I, -2 - I}]; \[ScriptL] = \[ScriptCapitalF][{"OriginalSystemEstimator", %}]

Out[5]=

绘制指定的船速的估计状态轨迹.

In[6]:=

X inp = -UnitStep[t] + UnitStep[t - 1]; ics = {-2, 1};

In[7]:=

X esr = OutputResponse[ SystemsModelDelete[\[ScriptL] /. v -> 5, None, -1], Join[{inp}, OutputResponse[{asys /. v -> 5, ics}, inp, {t, 0, 10}]], {t, 0, 10}];

In[8]:=

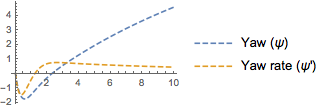

X Plot[esr, {t, 0, 10}, PlotStyle -> Dashed, PlotRange -> All, PlotLegends -> {"Yaw (\[Psi])", "Yaw rate (\[Psi]')"}]

Out[8]=

计算实际状态轨迹.

In[9]:=

X sr = StateResponse[{asys /. v -> 5, ics}, inp, {t, 0, 10}]

Out[9]=

比较实际和估计的偏航角和偏航率.

In[10]:=

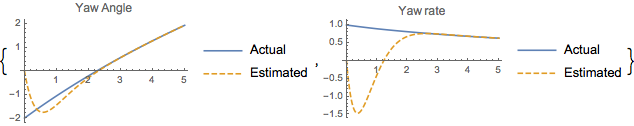

X Table[Plot[{sr[[i]], esr[[i]]}, {t, 0, 5}, PlotStyle -> {Automatic, Dashed}, PlotLegends -> {"Actual", "Estimated"}, PlotRange -> All, PlotLabel -> Switch[i, 1, "Yaw Angle", _, "Yaw rate"]], {i, {1, 2}}]

Out[10]=
